RF-9060-CO2-60W/80W/100W/130W
RAY FINE TECH

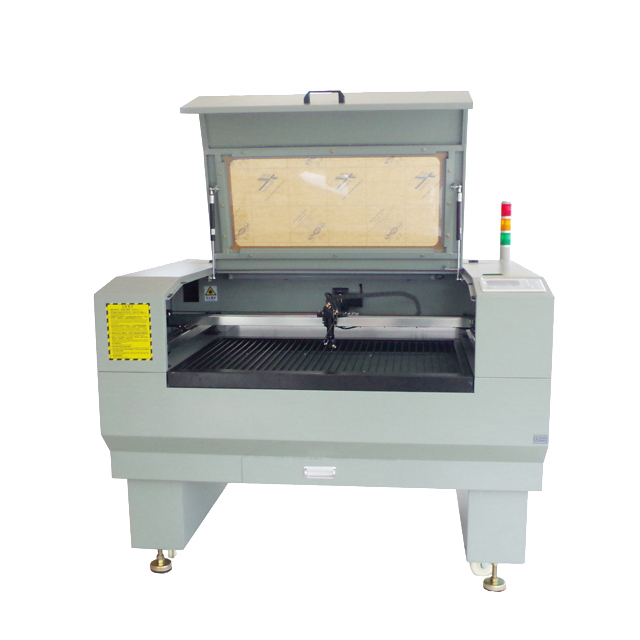

RF-9060 Professional CO2 Laser Cutting Machine 80w 100w 130w 150w
The transmission part adopts an internal sliding guide rail to improve the transmission speed of the X Y axis.
This co2 laser cutting machine is specially used for cutting work, cutting speed is faster. And it is more professional for cutting work, expecially used for cutting fabric
Materials can be cutting and engraving:
Acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other nonmetal materials with complex shapes
cutting samples:
leather wood acrylic fur fabric
RF-9060 Professional CO2 Laser Cutting Machine 80w 100w 130w 150w
The transmission part adopts an internal sliding guide rail to improve the transmission speed of the X Y axis.
This co2 laser cutting machine is specially used for cutting work, cutting speed is faster. And it is more professional for cutting work, expecially used for cutting fabric
Materials can be cutting and engraving:
Acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other nonmetal materials with complex shapes
cutting samples:
leather wood acrylic fur fabric
Model | RF-9060-CO2- 80W | RF-9060-CO2- 100W | RF-9060-CO2- 130W | RF-9060-CO2- 150W |
Laser power | RECI W2 80W | RECI W2 100W | RECI W6 30W | RECI W8 150W |
Cutting thickness | 0-12 mm (depends on different materials) | 0-15 mm (depends on different materials) | 0-25 mm (depends on different materials) | 0-25 mm (depends on different materials) |
Cooling way | Water chiller CW5000 and protection system | Water chiller CW5200 and protection system | ||
Focus lens | USA imported D20mm/FCL63.5mm | |||
Power supply | AC220/110V±10% 50/60hz | |||
Working area | 900*600mm | |||
Max moving Speed | 1500mm/s | |||
Laser energy control | 1-100% set by hand or software | |||
Working table | honeycomb table+aluminum blade table | |||
Locating precision | <0.01mm | |||
Operating temperature | -5℃-35℃ | |||
Resolution ratio | 4500dpi | |||
Control program | RDCAM(LASERWORK) | |||
Data transfer interface | USB | |||
System environment | WINDOWS 2000/WINDOWS XP/vista/Win7/8/10 | |||
Graphic format supported | The file which Corel Draw, Photo shop, Auto-CAD can identify | |||
Compatible software | Corel Draw, Auto-CAD | |||
Color separation | Separation of cutting up to 256 colors | |||
Sloping engraving | yes | |||
Red dot pointer | yes | |||
milliamp meter | yes | |||
pass through doors for long work-piece | yes | |||
Packing | Plywood case | |||
Package dimension | 1600*1140*1300mm | |||
gross weight | 360kg |
Model | RF-9060-CO2- 80W | RF-9060-CO2- 100W | RF-9060-CO2- 130W | RF-9060-CO2- 150W |
Laser power | RECI W2 80W | RECI W2 100W | RECI W6 30W | RECI W8 150W |
Cutting thickness | 0-12 mm (depends on different materials) | 0-15 mm (depends on different materials) | 0-25 mm (depends on different materials) | 0-25 mm (depends on different materials) |
Cooling way | Water chiller CW5000 and protection system | Water chiller CW5200 and protection system | ||
Focus lens | USA imported D20mm/FCL63.5mm | |||
Power supply | AC220/110V±10% 50/60hz | |||
Working area | 900*600mm | |||
Max moving Speed | 1500mm/s | |||
Laser energy control | 1-100% set by hand or software | |||
Working table | honeycomb table+aluminum blade table | |||
Locating precision | <0.01mm | |||
Operating temperature | -5℃-35℃ | |||
Resolution ratio | 4500dpi | |||
Control program | RDCAM(LASERWORK) | |||
Data transfer interface | USB | |||
System environment | WINDOWS 2000/WINDOWS XP/vista/Win7/8/10 | |||
Graphic format supported | The file which Corel Draw, Photo shop, Auto-CAD can identify | |||
Compatible software | Corel Draw, Auto-CAD | |||
Color separation | Separation of cutting up to 256 colors | |||
Sloping engraving | yes | |||
Red dot pointer | yes | |||
milliamp meter | yes | |||
pass through doors for long work-piece | yes | |||
Packing | Plywood case | |||
Package dimension | 1600*1140*1300mm | |||
gross weight | 360kg |
1.Heavy duty machine body with good rigidity
2.Taiwan imported linear guide rails with good precision
3.Laser work control program easy study and operation without dongle
4.High precision 3phase leadshine stepping motor and driver
5.USA imported focus lens with good focus effect
6.Quality RECI 80W 100W 130W 150w with 10000 hours life time
7.China best brand TEYU chiller CW5000/CW5200
8.Honeycomb table for small and soft materials;
9.Aluminium blade table for large and hard materials

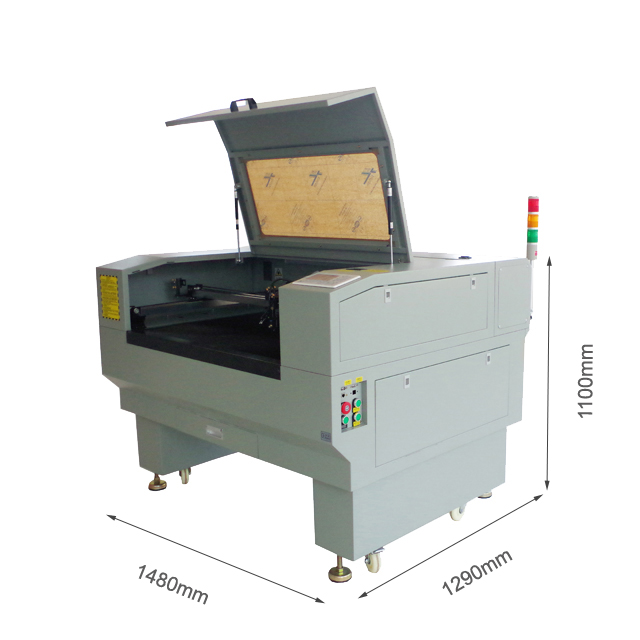

Machine dimension:
