RF-F-20W ,RF-F-30W, RF-F-50W, RF-F-60W, RF-F-80W, RF-F-100W
RAY FINE TECH
Enclosed Type Fiber Laser Marking Machine
>>Application
It can mark all kind metal materials and some non-metallic materials, industrial plastic, electroplates, metalcoated materials, rubbers, ceramics, mobile button, plastic transparent button. Electronic parts, IC, tools, communication products. Bathing products, tool accessories, glasses and watches, jewelry, button decoration for boxes and bags, cookers, stainless steel products and so on
>>Features
1. Low running cost
2 .Small size, one unit structure and user-friendly operation.
3.Maintenance-free and 100 000 hours long life time.
4. Quality digital scan head.
5. EZCAD control program
>>Marking Samples
Enclosed Type Fiber Laser Marking Machine
>>Application
It can mark all kind metal materials and some non-metallic materials, industrial plastic, electroplates, metalcoated materials, rubbers, ceramics, mobile button, plastic transparent button. Electronic parts, IC, tools, communication products. Bathing products, tool accessories, glasses and watches, jewelry, button decoration for boxes and bags, cookers, stainless steel products and so on
>>Features
1. Low running cost
2 .Small size, one unit structure and user-friendly operation.
3.Maintenance-free and 100 000 hours long life time.
4. Quality digital scan head.
5. EZCAD control program
>>Marking Samples
Model | RF-F-20W | RF-F-30W | RF-F-50W |
Fiber laser source | RFL-P20QE | RFL-P30Q | RFL-P50Q |
Laser beam quality M2 | <1.5 | <1.8 | |
Max single pulse energy | 0.67mj | 1mj | |
Frequency | 20-60KHZ | 30-60KHZ | 50-100KHZ |
Pulse duration | 90-130ns | ||
Center Wavelength | 1064nm | ||
Cooling type | Air cooling | ||
Marking Area | 110mm×110mm | ||
How to get focus | Double red dots | ||
Max working speed | 8m/s | ||
Repeat Accuracy | <8μrad | ||
Min. Laser spot | 27.5μm | ||
Min. Character size | 0.2mm | ||
Supply voltage: | AC220V 50HZ | ||
Control program | Genuine EZ-CAD control system Compatible with win7/8/10 | ||
Power consumption | ≦500w | ≦600w | ≦800w |
Model | RF-F-20W | RF-F-30W | RF-F-50W |
Fiber laser source | RFL-P20QE | RFL-P30Q | RFL-P50Q |
Laser beam quality M2 | <1.5 | <1.8 | |
Max single pulse energy | 0.67mj | 1mj | |
Frequency | 20-60KHZ | 30-60KHZ | 50-100KHZ |
Pulse duration | 90-130ns | ||
Center Wavelength | 1064nm | ||
Cooling type | Air cooling | ||
Marking Area | 110mm×110mm | ||
How to get focus | Double red dots | ||
Max working speed | 8m/s | ||
Repeat Accuracy | <8μrad | ||
Min. Laser spot | 27.5μm | ||
Min. Character size | 0.2mm | ||
Supply voltage: | AC220V 50HZ | ||
Control program | Genuine EZ-CAD control system Compatible with win7/8/10 | ||
Power consumption | ≦500w | ≦600w | ≦800w |
>>Optional Parts

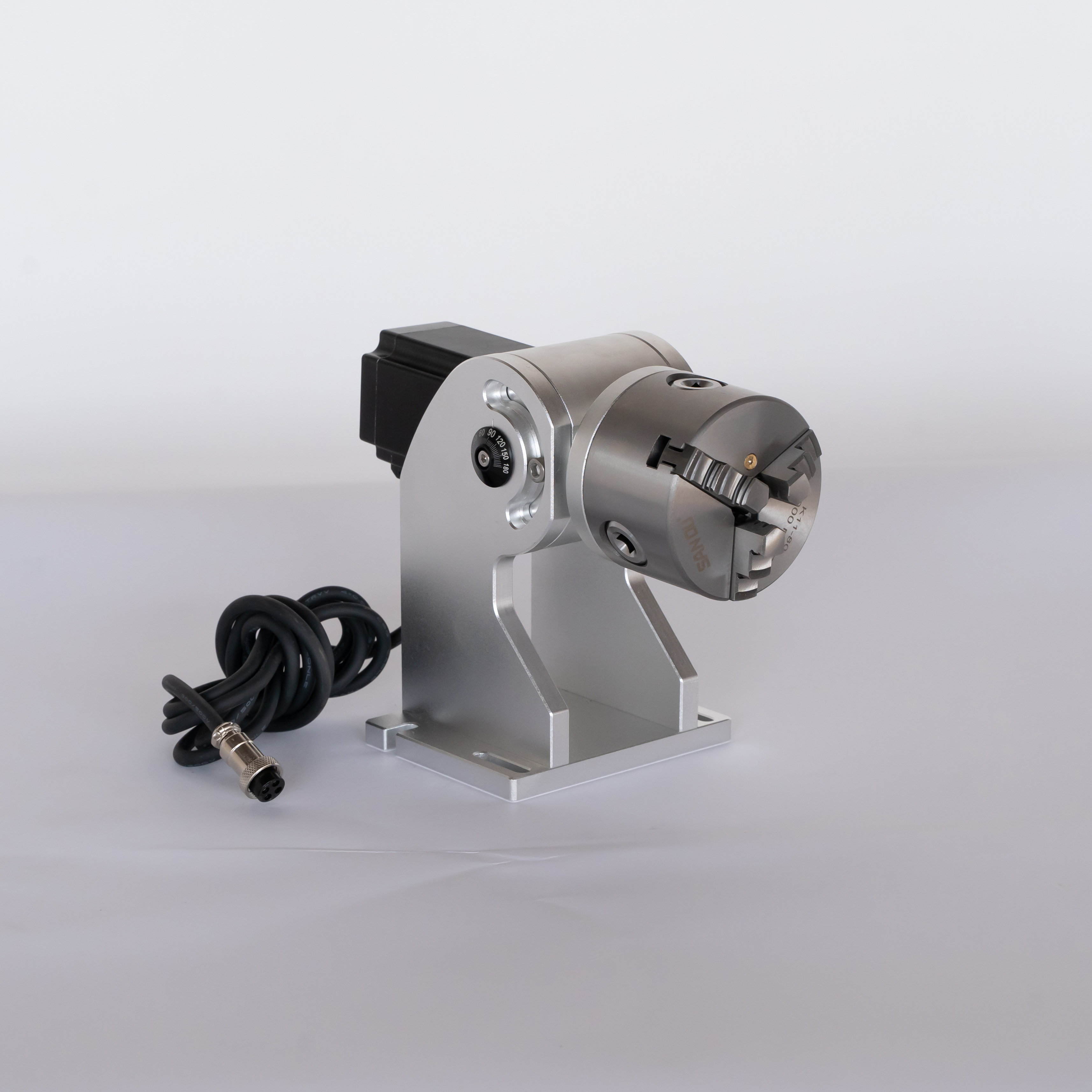

1. Rotary axis
which can be used to mark on cylinder objects
2.Cyclops system feature
In the EZCAD software can be achieved precise positioning, more simple and convenient.

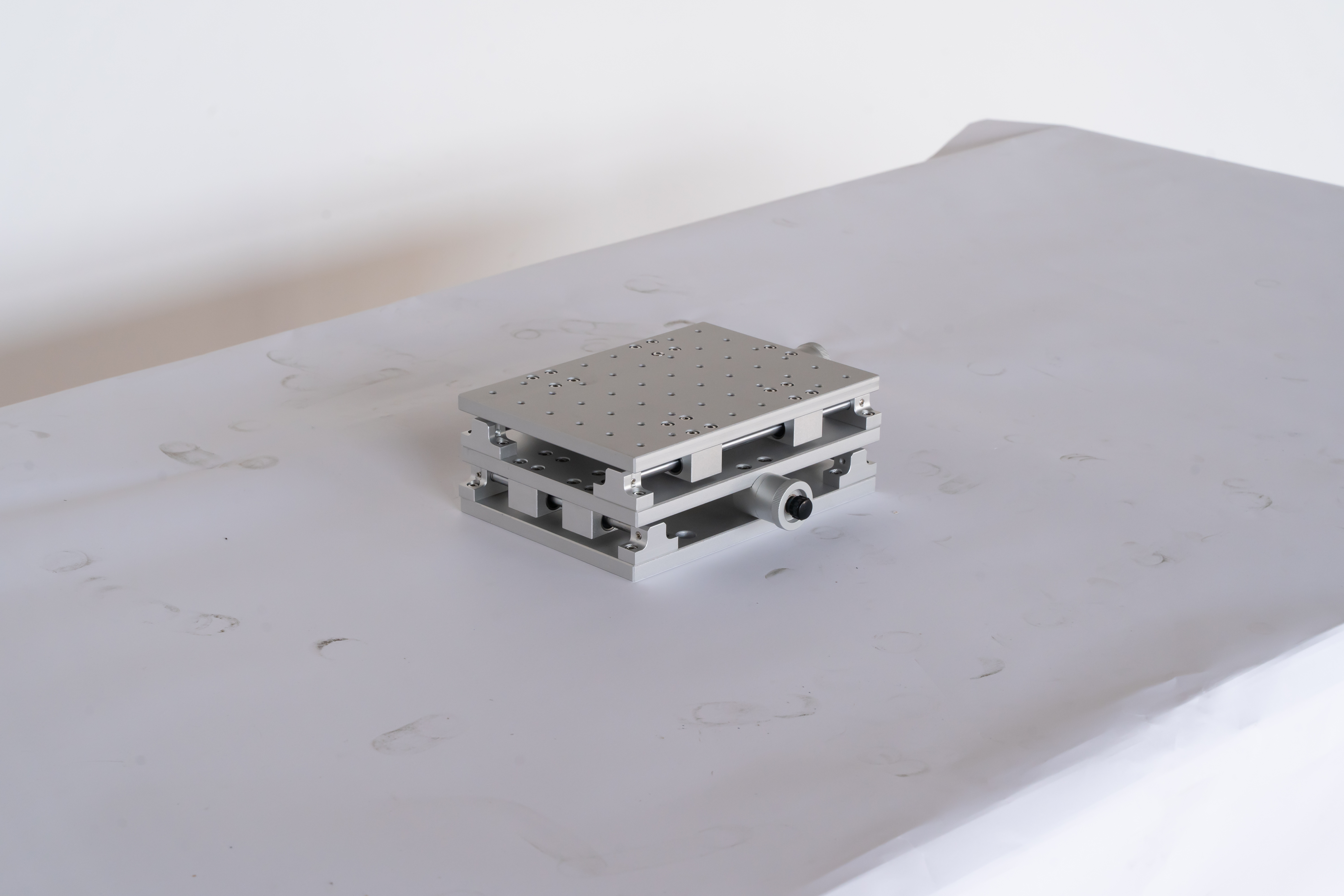

3.2D working table :Fine-tuning
4.Spare lens :Work in different marking areas

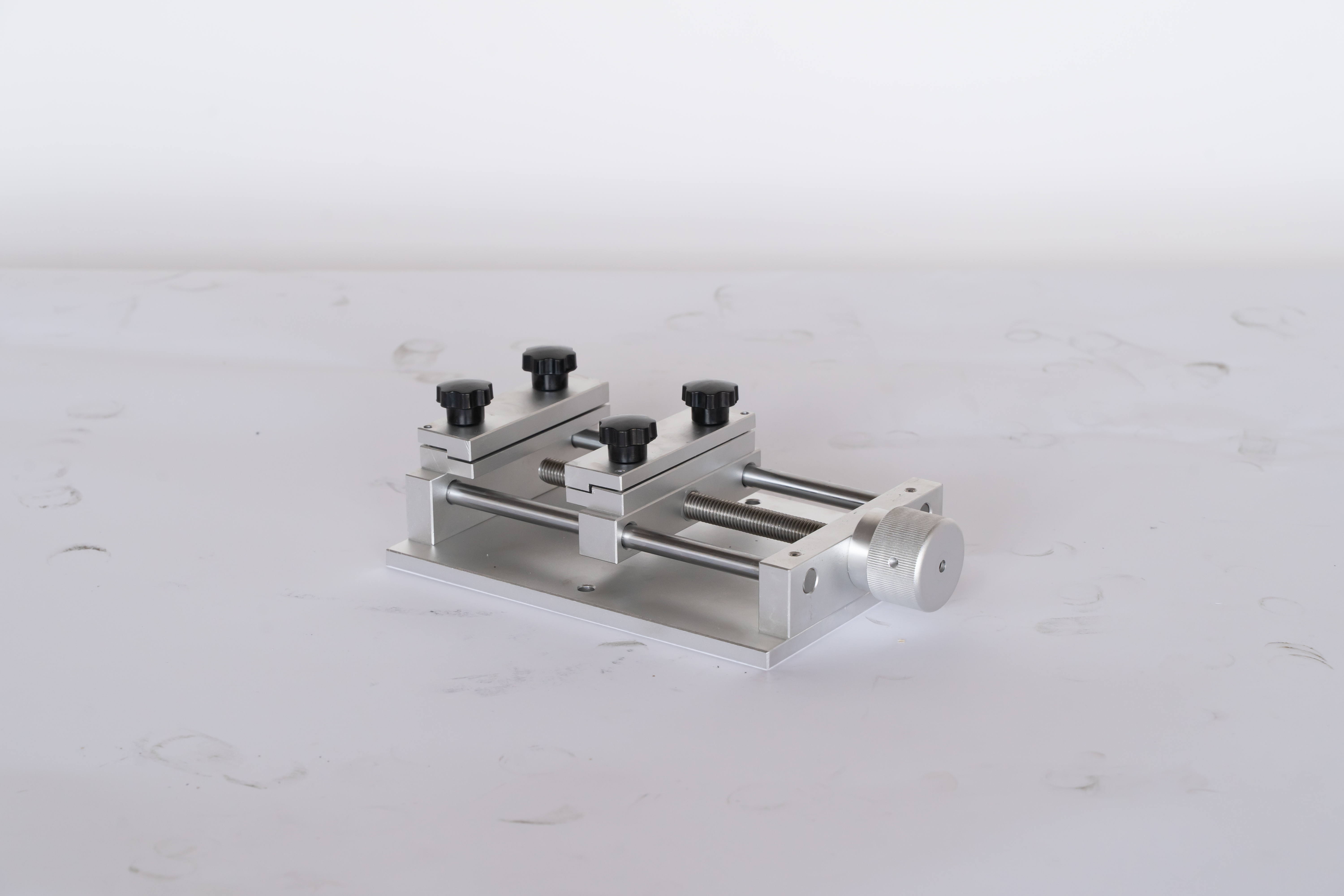

5. Metal holder
>>Optional Parts
1. Rotary axis
which can be used to mark on cylinder objects
2.Cyclops system feature
In the EZCAD software can be achieved precise positioning, more simple and convenient.
3.2D working table :Fine-tuning
4.Spare lens :Work in different marking areas
5. Metal holder
