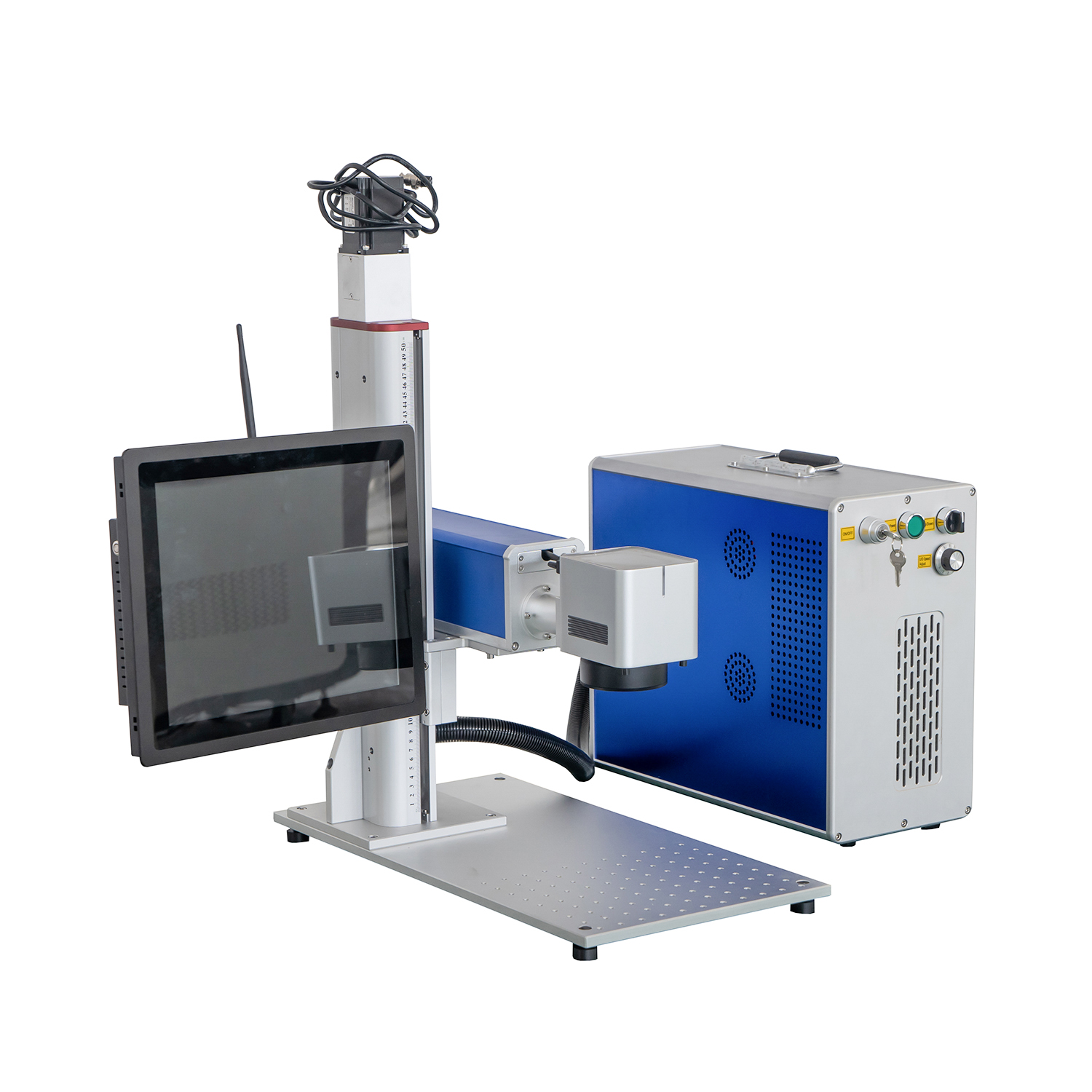

Touch Screen Computer IPG JPT RAYCUS MAX CNC Fiber Laser Marker Engraver Machine for Metal Plastic

Share to:

Touch Screen Computer IPG JPT RAYCUS MAX CNC Fiber Laser Marker Engraver Machine for Metal Plastic

5 0 Reviews

touch screen computer; split type design; BJJCZ controller; easy and convenient for operation;

Availability:

Quantity:



Inquire Add to Basket

Model:
20W 30W 50W 60W 100W 120W
Brand:
RAY FINE TECH

More compact design more easy operation;

small volume and easy shipping;

touch screen computer with EZCAD controller installd;

motorized Z axis more easy to up/down

*Verify Code

Related Products

Motorized Fiber Laser Raycus Jpt 20W 30W 50W 60W 80W 100W 120W Laser Engraving Marking Cutting Machine for Metal Plastic

Full Enclosed Desktop CNC Fiber Laser Marker Marking Machine with CE And FDA Certificate

Full Enclosed Automatic Door 20w 30w 50w 60w 80w 100w JPT MOPA Fiber Laser Marking Machine

Ray Fine Full Closed JPT MOPA M7 20W 80W 100W 150W 200W Galvo Fiber Laser marking engraving Cutting Machine with Auto Focus And Cyclops Camera Position System

Laser power	20W	30W	50W
Fiber laser source	RFL-P20QE	RFL-P30QB	RFL-P50QB
Max single pulse energy	0.67mj	1mj
Marking Area	110x110mm
Laser beam quality M2	<1.6	<1.8
Frequency	20-60khz	30-60khz	50-100khz
Max working speed	12m/s
Min. Laser spot size	27.5μm
Center wavelength	1064nm
Min. Character size:	0.2mm
Repetition Accuracy	<22μrad
Supply voltage:	AC110V 60HZ
Control program	EZ-CAD control system
Power consumption	≦600w	≦800w	≦1200w

Laser power	20W	30W	50W
Fiber laser source	RFL-P20QE	RFL-P30QB	RFL-P50QB
Max single pulse energy	0.67mj	1mj
Marking Area	110x110mm
Laser beam quality M2	<1.6	<1.8
Frequency	20-60khz	30-60khz	50-100khz
Max working speed	12m/s
Min. Laser spot size	27.5μm
Center wavelength	1064nm
Min. Character size:	0.2mm
Repetition Accuracy	<22μrad
Supply voltage:	AC110V 60HZ
Control program	EZ-CAD control system
Power consumption	≦600w	≦800w	≦1200w
