50W 60W 100W 200W 300W
ray fine tech
845611

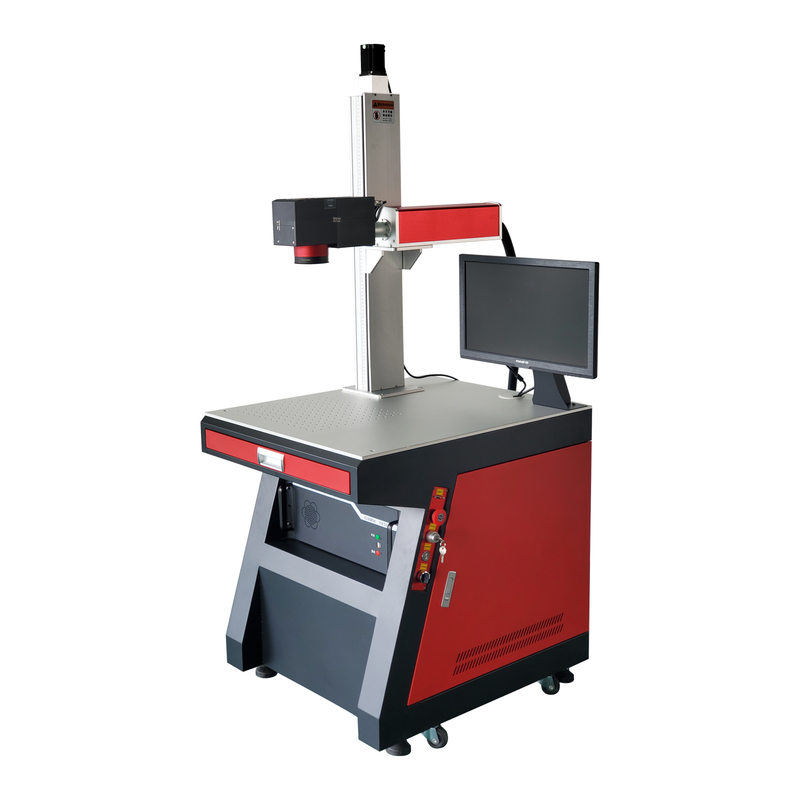

3D Laser Marking Machine

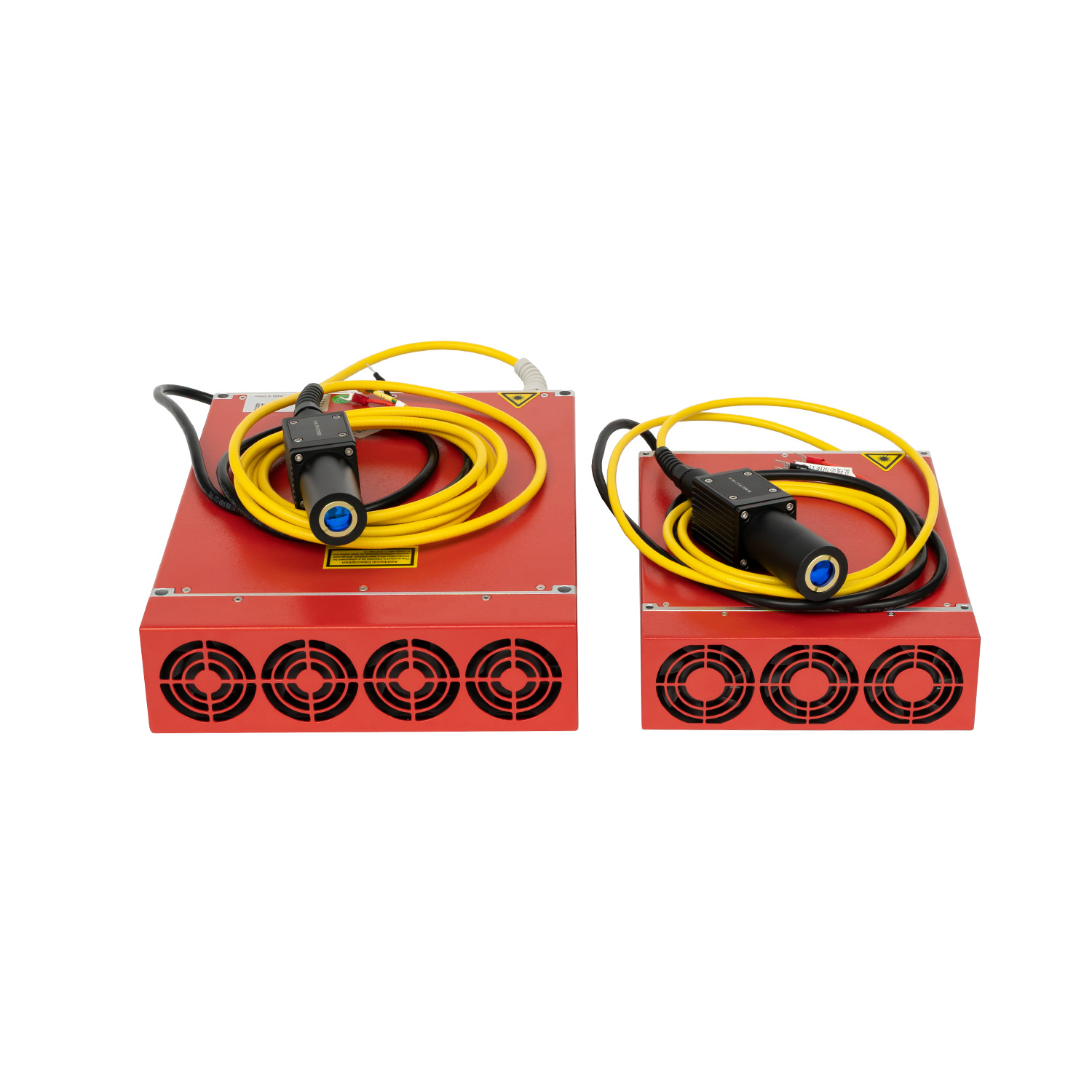

Fiber laser source - JPT (Hot Recommendation)
Stable working performance and fiber laser source the service life of more than 80,000 hours.

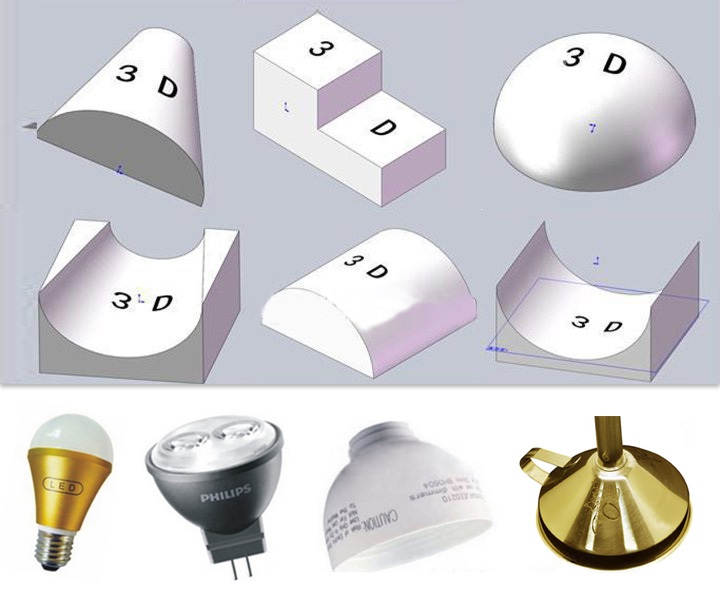

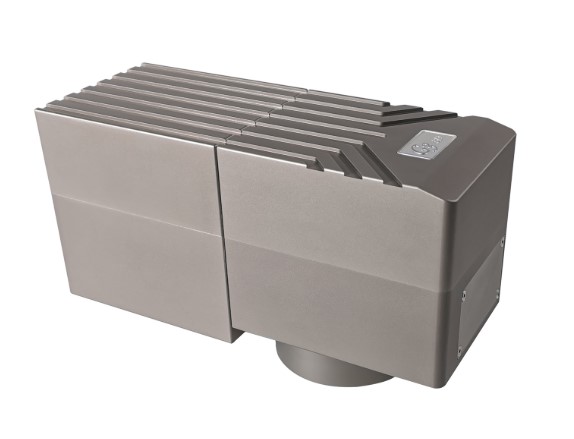

3D Galvanometer
LASER MARKING MACHINE DATASHEET
| Machine name | Laser Marking Machine |
| Laser power | 50W/60W/100W/200W/300W |
| Laser type and brand | JPT mopa fiber laser |
| Laser frequency | 1-4000kHz |
Laser wavelength | 1064nm |
Marking area (optional) | 70X70mm 110x110mm 150x150mm 175x175mm 200x200mm 220x220mm 250x250mm 300x300mm |
| Marking depth | ＜3.0mm depend on engraving time |
| Marking speed | 8000mm/s |
| Minimum marking character | 0.1mm visible |
| Control software | EZCAD 3 |
| Control software support | Vector graphics / Bitmap / DXF and other file formats |
| Control software operation | Windows computer |
| Machine work voltage | AC110V 60HZ, AC220V 50HZ ±10% |
| Machine power consumption | ＜900W |
| Machine cooling way | Air cooling |
*Plywood box
*Clean and sanitize the machine
*Wrap the waterproof membrane
*Fill with foam
-We provide free YouTube operation videos and PDF English manuals.
-We have professional after-sales technicians who can assist through WeChat, Email, WhatsApp, Teamviewer.
-Before packing in our factory, we do a 24-hour test. When you receive the machine, connect to the computer and you can use the laser directly.
-We Provide Free Ezcad Software.
Sample show: Metal surface marking, plastic surface marking, metal deep engraving, metal cutting, metal cleaning, metal drilling. From 20W to 200W.
