RF-F-6060
RAY FINE
845611

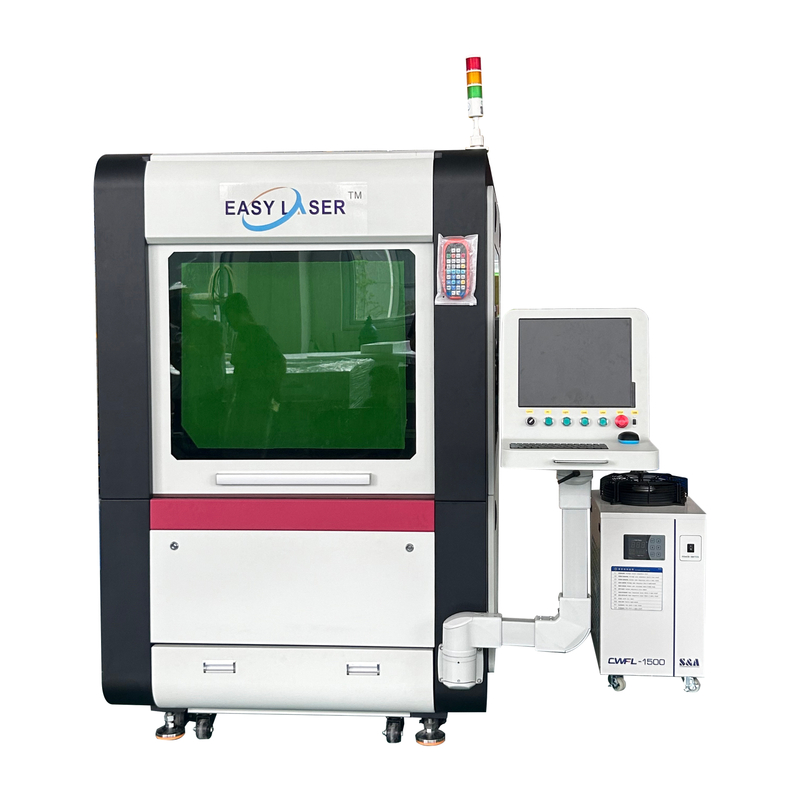

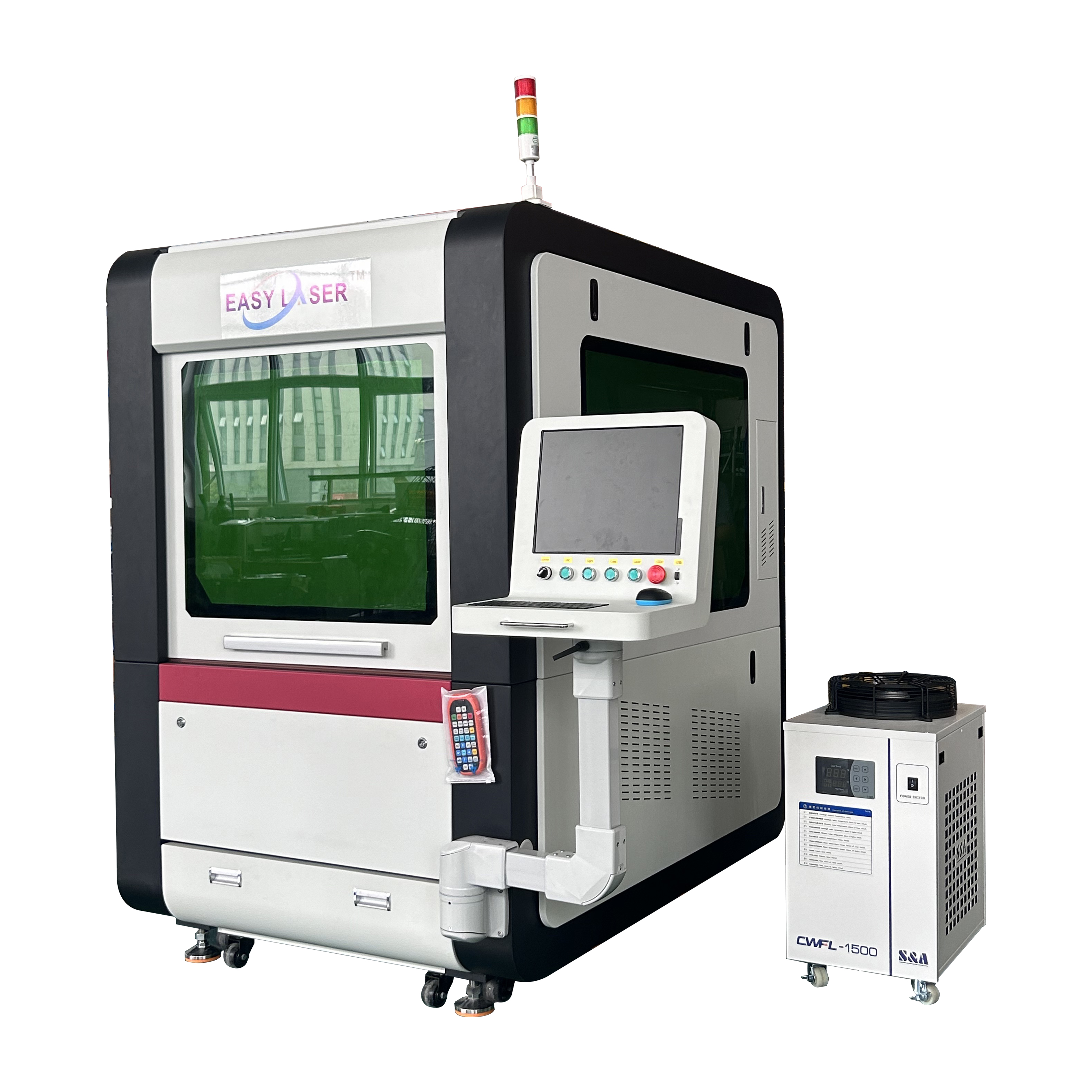

1500W 2000W 600x600mm working area full closed Fiber laser cutting machine for metal precision cutting
This machine structure designed is specially for metal precision cutting:
X Y Z ball screw transmission
Marble work platform
Y1 axis straightness | ≦0.01mm |
Y2 axis straightness | ≦0.01mm |
Y1 axis circle run-out of ball screw shaft end | ≦0.05mm |
Y2 axis circle run-out of ball screw shaft end | ≦0.05mm |
X axis straightness | ≦0.01mm |
X axis circle run-out of ball screw shaft end | ≦0.05mm |
X Y axis verticality | ≦0.02mm |

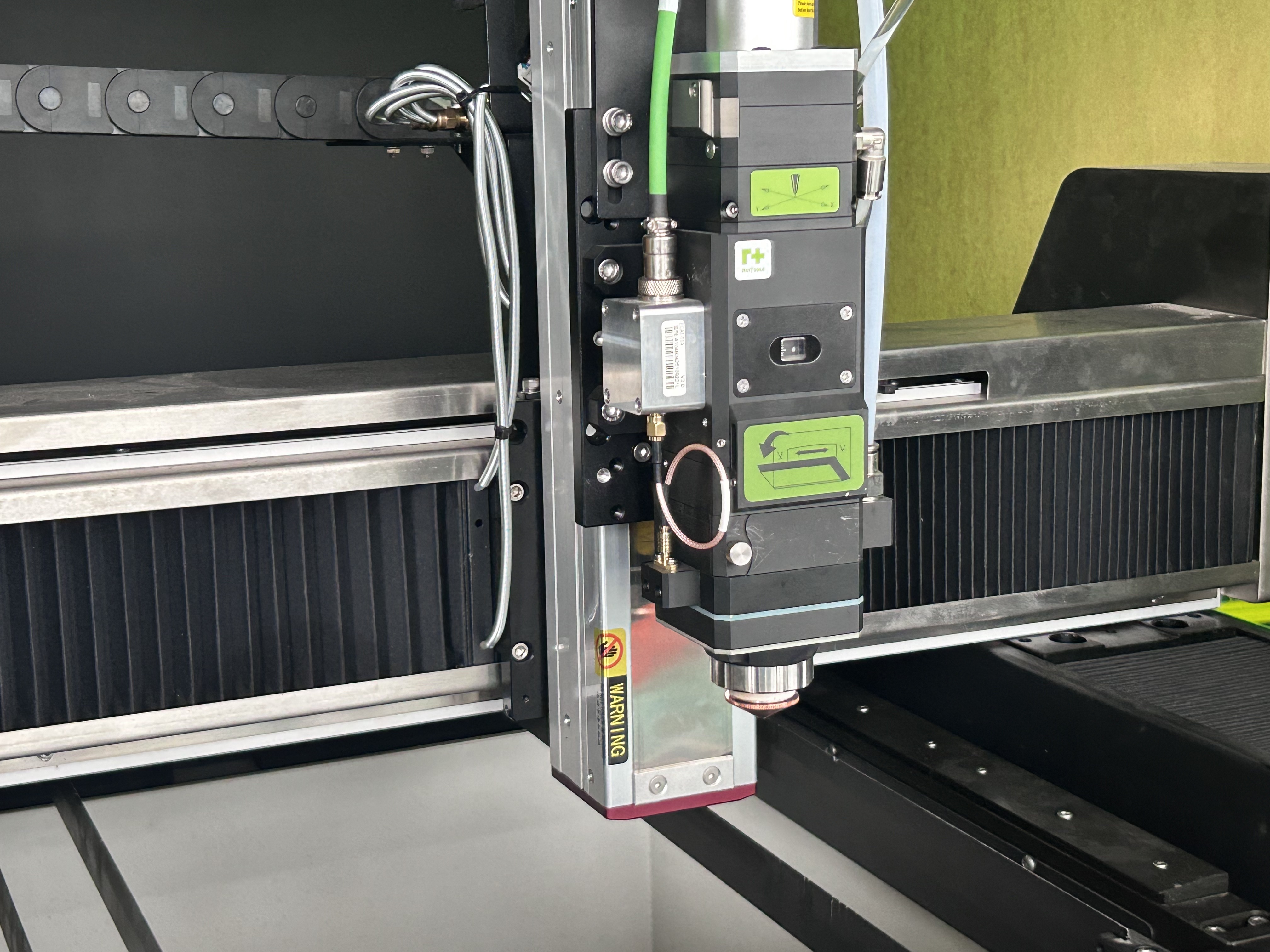

Raytools cutting head(Auto focus and manual focus-optional)
Manual focus laser head
Auto focus laser head
For Auto focus laser head
The laser head has a built-in motor drive unit, and the focusing lens is driven by a linear mechanism to automatically change the position . The user can set continuous focus through the program to complete the rapid perforation of thick plates and automatic cutting of plates of different thicknesses and materials.

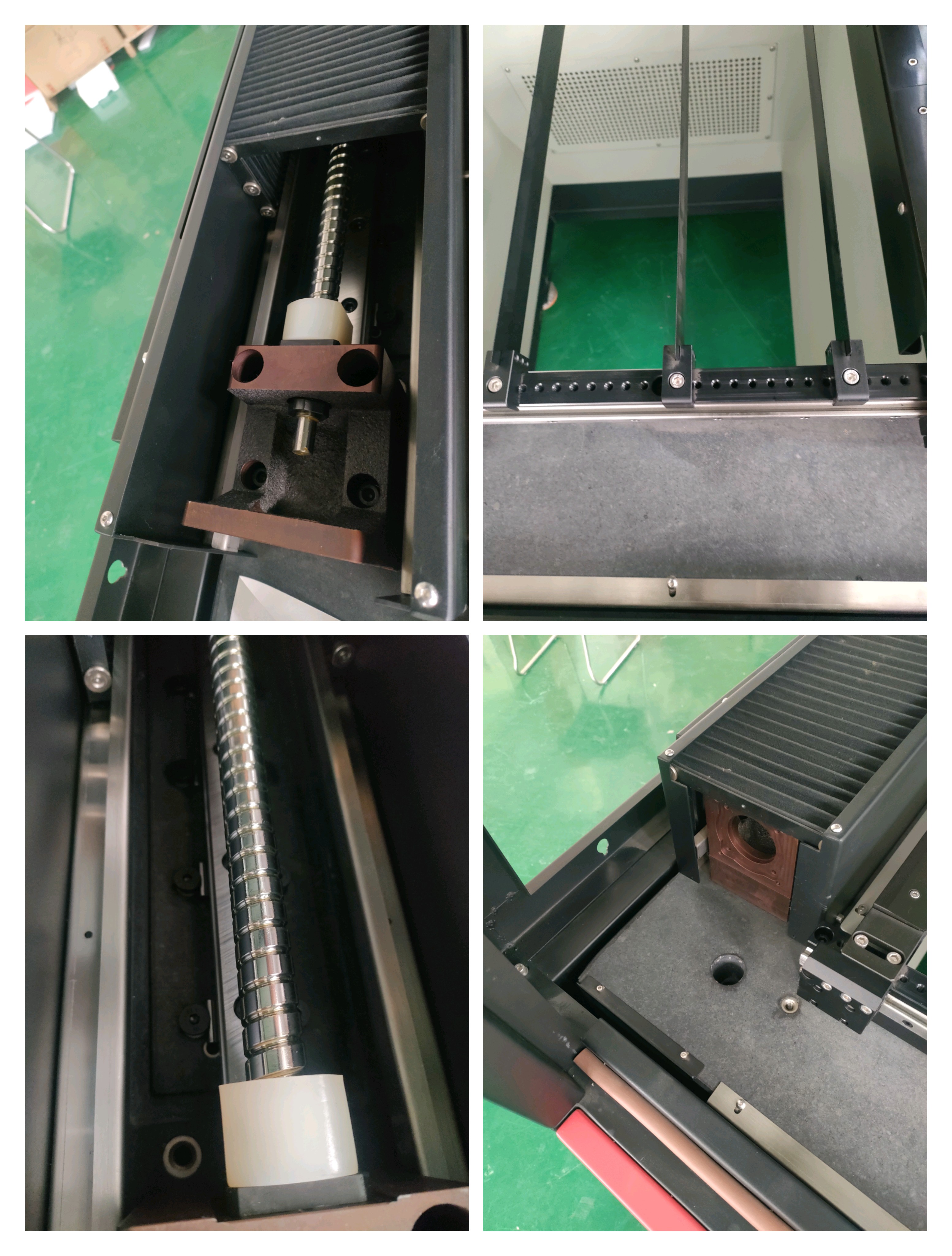

Machine structure

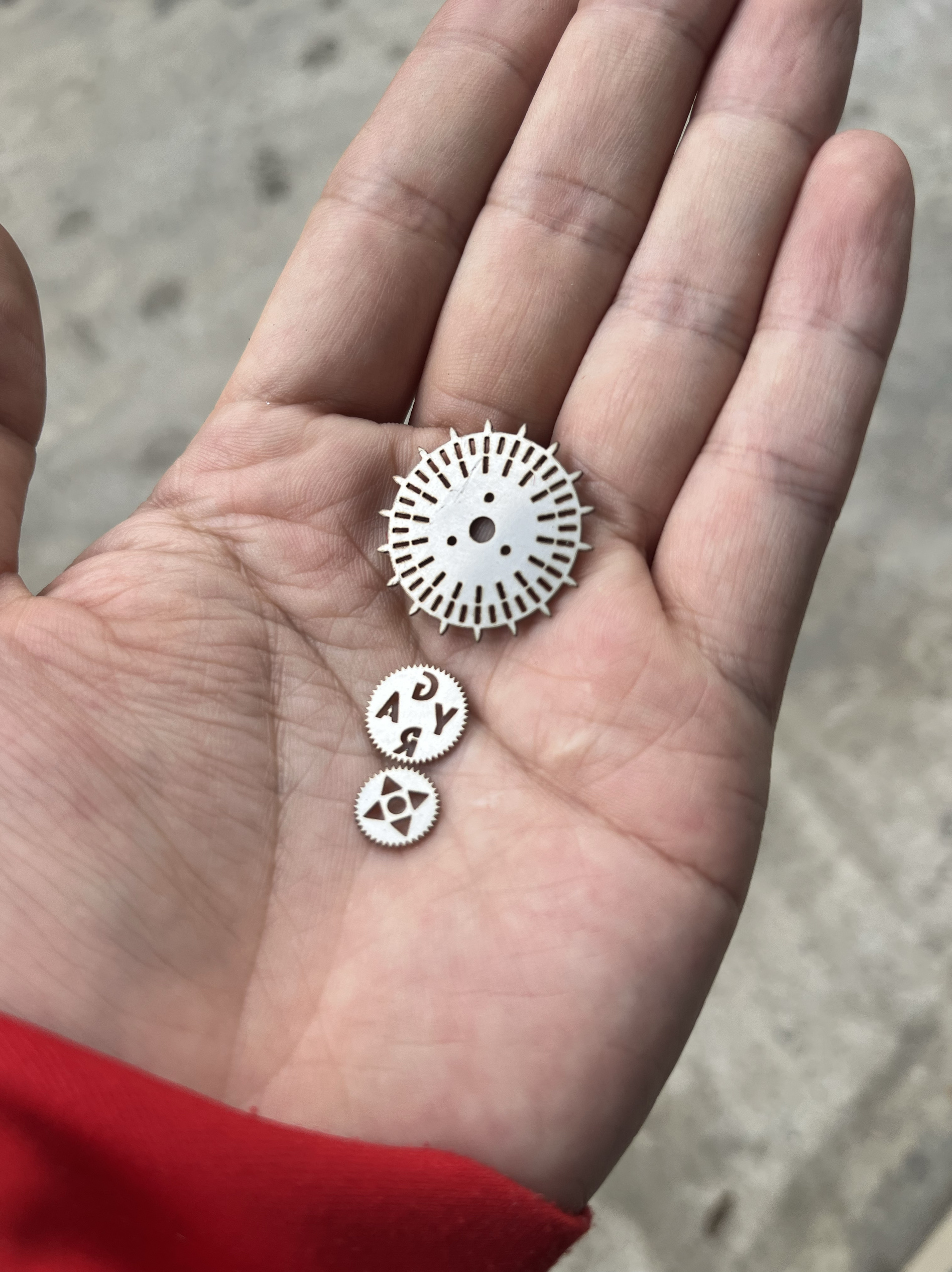

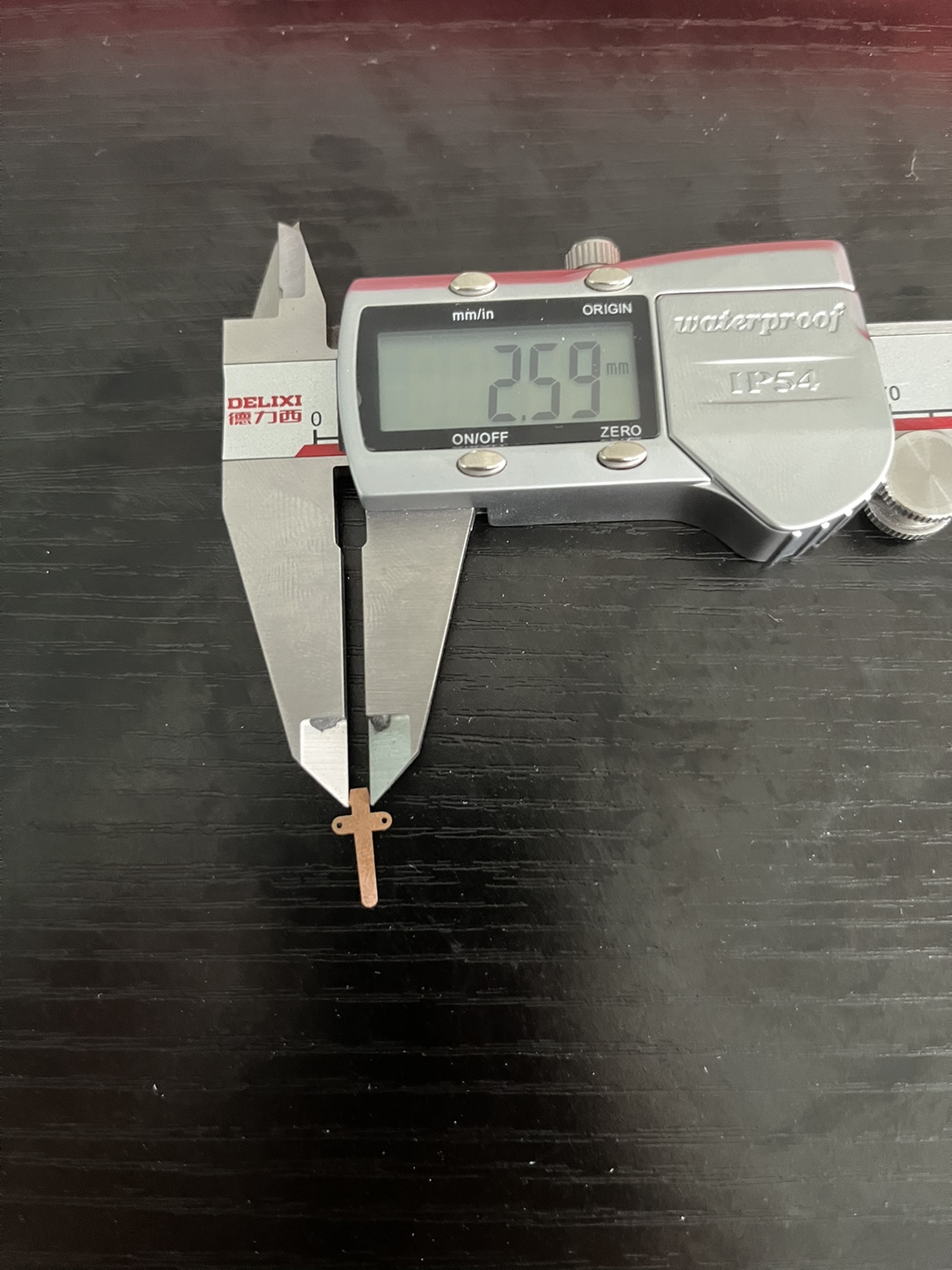

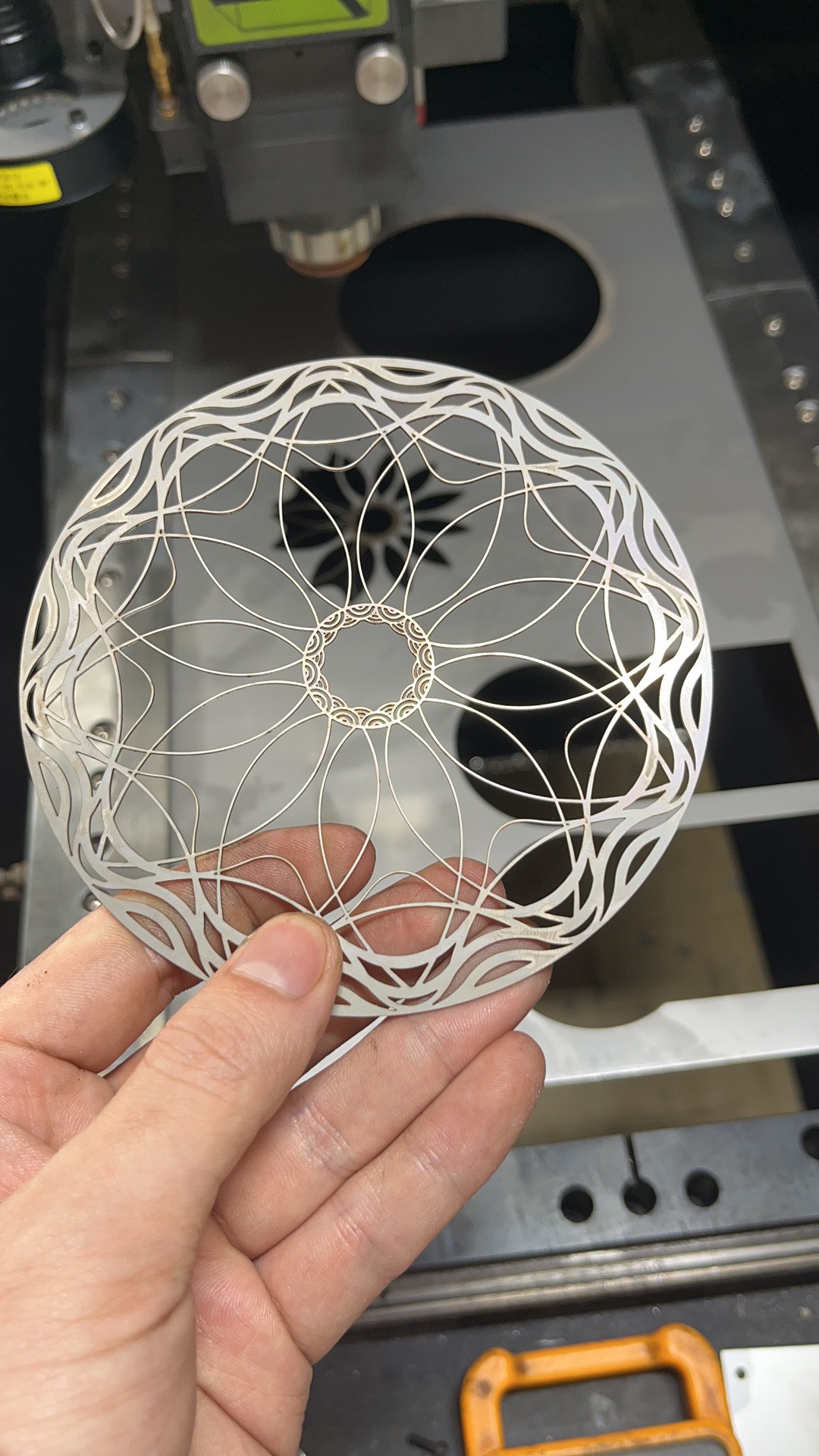

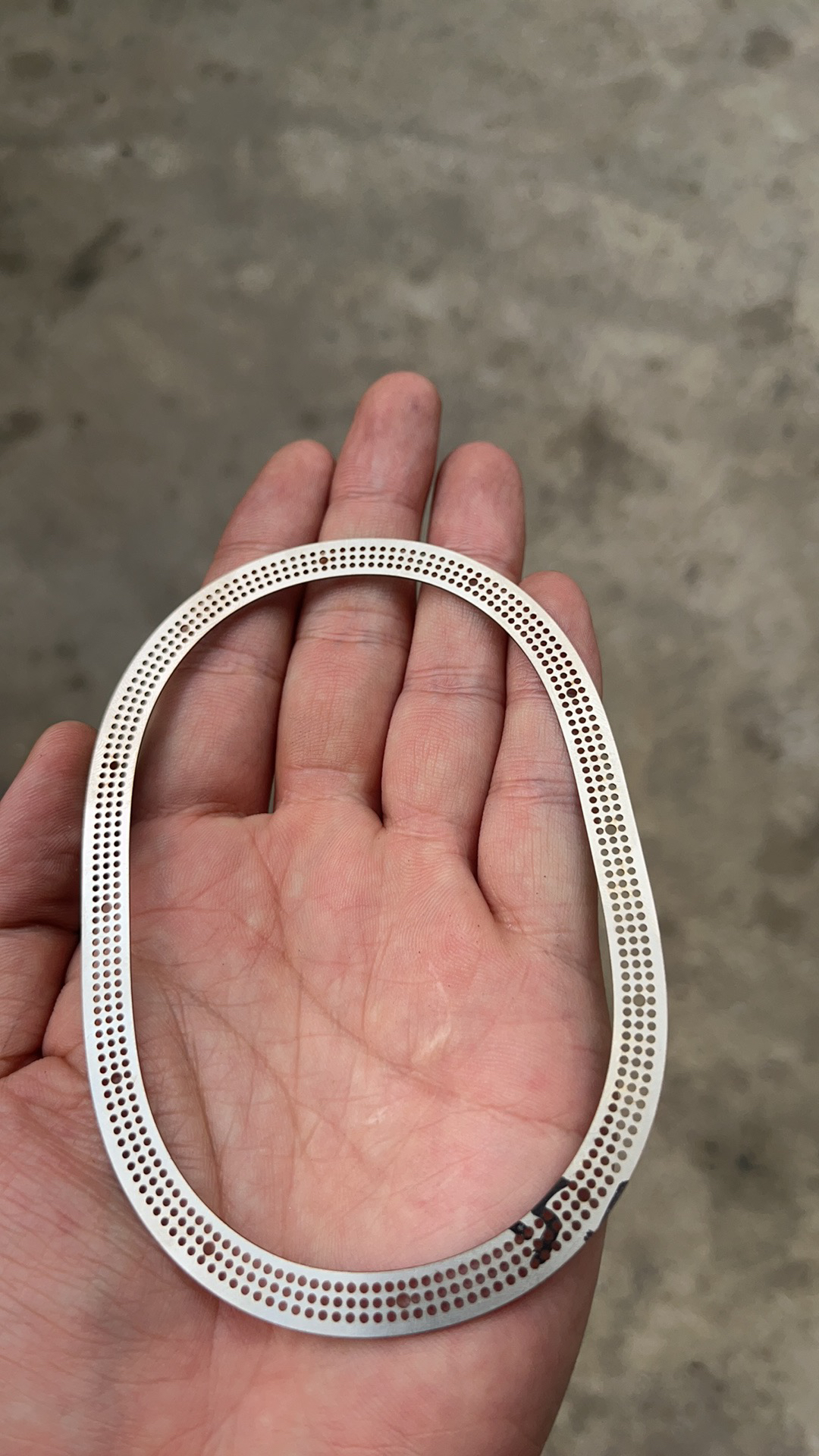

Cutting samples
Any question, please feel free to contact sales05@rayfinetech.com, thank you :)
