RF-F-500W, RF-F-1000W, RF-F-1500W, RF-F-2000W
RAY FINE

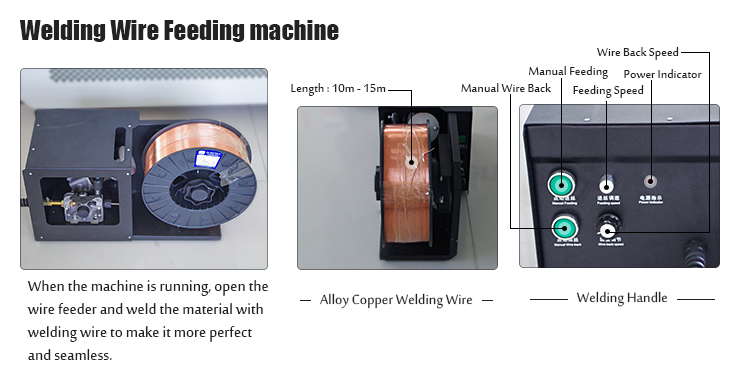

500w 1000w 1500w 2000w handheld laser welding machine (including wire feeding machine)
Safety - it has the laser beam output control ,Only when the welding head touches the metal surface,the machine can work,It can meet the CE and FDA safety standard,level IV
Stable -water cooling system
Convenient - we provide 10M or 15M welding line for easy to welding work
Specification
Model | RF-F-500W 1000W 1500W 2000W |
Laser power | 500W 1000W 1500W 2000W |
Laser type | RAYCUS fiber laser 1000W 1500W |
Fiber length | 10M or 15M |
Beam diameter | 0.1~3.0mm |
Power supply | 220v/1500W 2000W 380v |
Cooling system | industrial water chiller |
Net weight | 300KG |
Gross weight | 340KG |

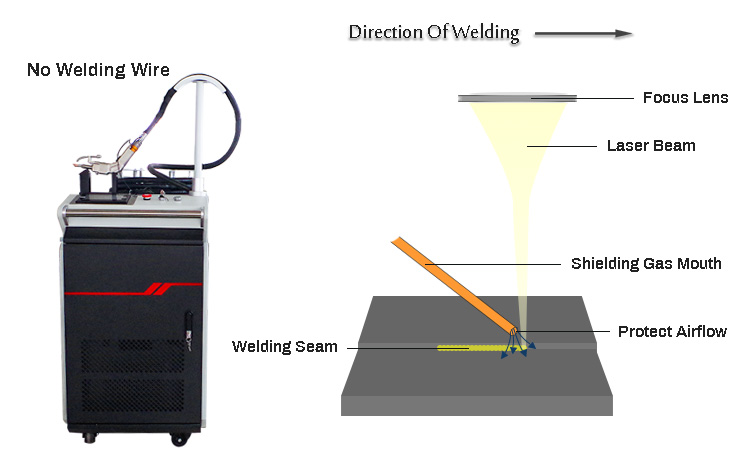

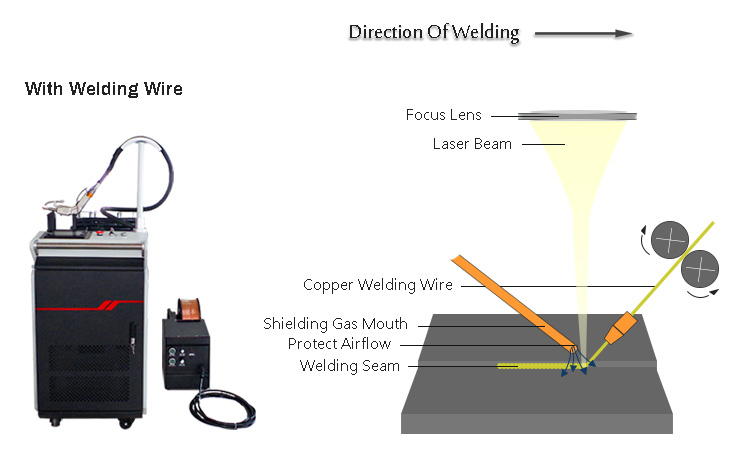

Welding Samples
500w 1000w 1500w 2000w handheld laser welding machine (including wire feeding machine)
Safety - it has the laser beam output control ,Only when the welding head touches the metal surface,the machine can work,It can meet the CE and FDA safety standard,level IV
Stable -water cooling system
Convenient - we provide 10M or 15M welding line for easy to welding work
Specification
Model | RF-F-500W 1000W 1500W 2000W |
Laser power | 500W 1000W 1500W 2000W |
Laser type | RAYCUS fiber laser 1000W 1500W |
Fiber length | 10M or 15M |
Beam diameter | 0.1~3.0mm |
Power supply | 220v/1500W 2000W 380v |
Cooling system | industrial water chiller |
Net weight | 300KG |
Gross weight | 340KG |
Welding Samples

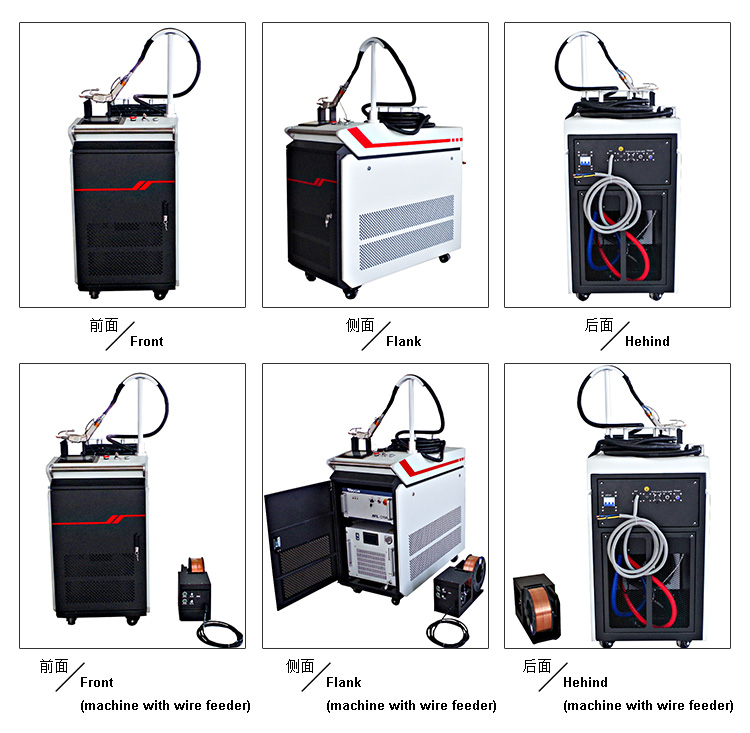

>>Machine photos

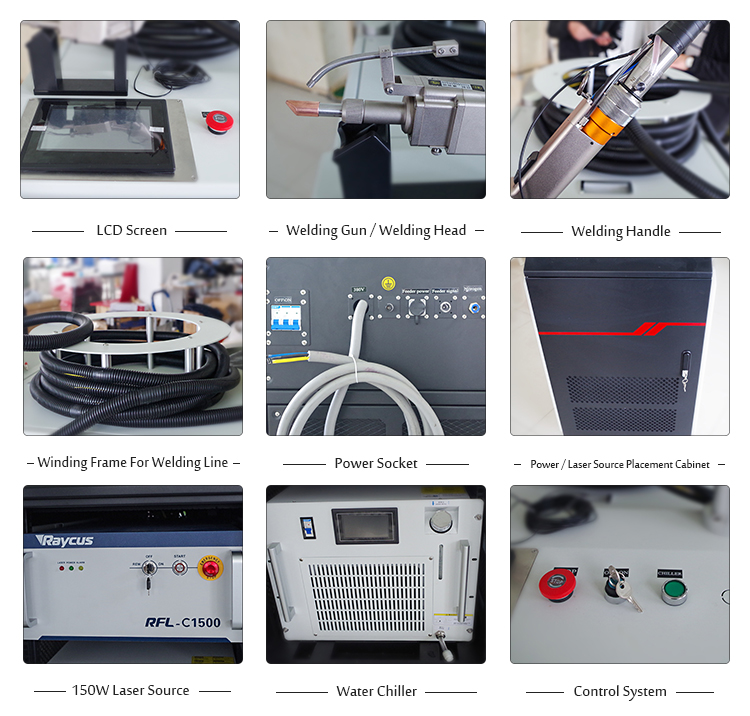

>>Machine detailed parts
>>Machine packing
>>Machine photos
>>Machine detailed parts
>>Machine packing
