RF-UV-15W RF-UV-20W RF-UV-25W
RAY FINE
845611
Ray fine PCB FPC 15W 20W 25W high precision UV Galvo laser cutting machine
Closed type
Open type:
Samples
Glass flat surface marking
food package marking
mobile phone charger
food package
PCB
Model | YJ-UV-15W | YJ-UV-20W | YJ-UV-25W |
Output power | >15w@50KHZ | >20W@60KHZ | >25w@50KHZ |
Laser beam quality M2 | <1.2 | ||
Pulse duration | <15 | <15 | <20 |
Beam Circularity | >90% | ||
Beam Full Divergence Angle | ≤2mrad | ||
Bean Diameter(mm) | ~0.55 | ~0.47 | ~0.55 |
Pulse Repetition Rate Rang | 40-300khz | ||
Center Wavelength | 355nm | ||
Cooling type | water | ||
Marking Area | 110x110 | ||
How to get focus | double red light | ||
Max positioning speed | 8000mm/s | ||
Supply voltage | AC110V 60HZ / AC220V 50HZ | ||
Control program | EZCAD / RUIDA |
laser source

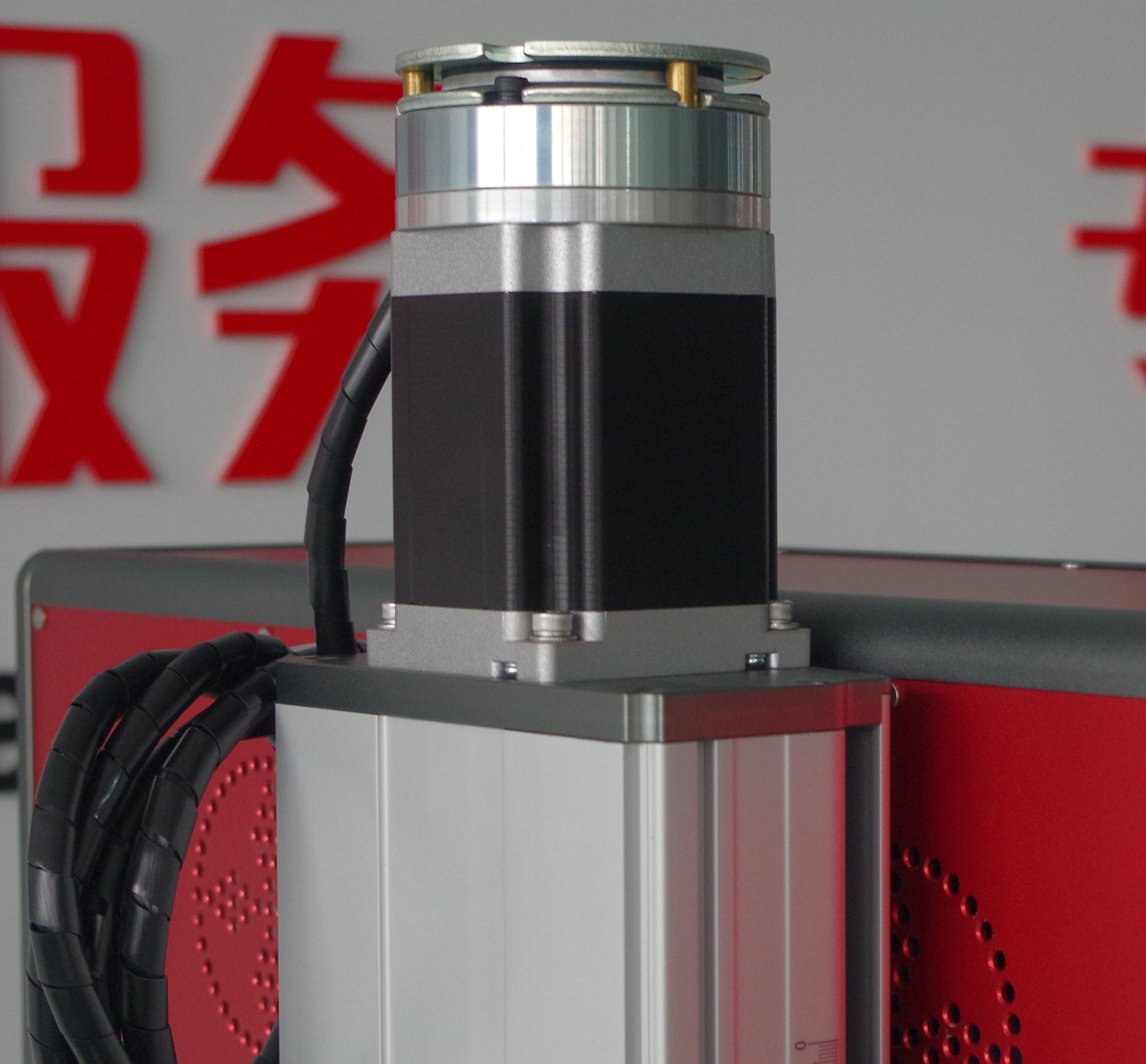

For finding focus before cutting, NOT by manual handle, it is more convenient for the user
High quality indutrial grade water chiller
Optional part:
2D working table
3D working table
work piece holder
smoke purifier
CCD Visual positioning system
The machine can find the marking cutting place automatically.
software controlled X Y moving table
It can enlarge the marking cutting area, bigger than standard filed lens 300mm
