Availability: | |
---|---|
Quantity: | |
RF-CO2-30W,RF-CO2-55W
rayfinetech

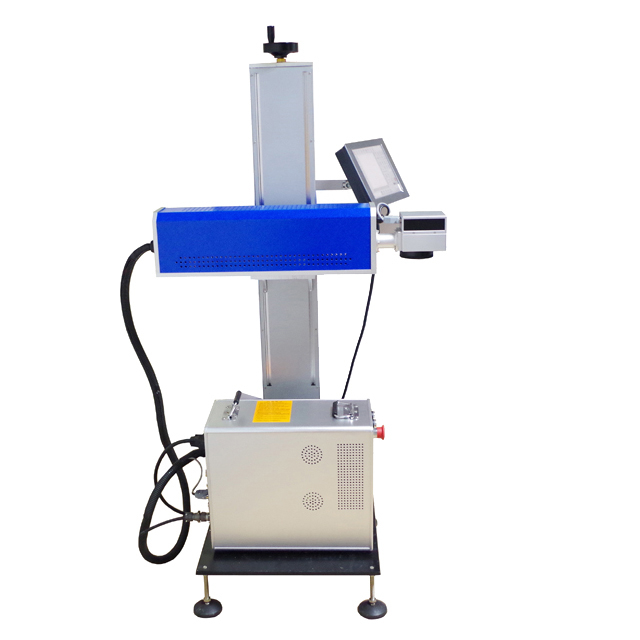

RF Metal Tube Flying CO2 Laser Marking Machine with Coherent 30W 55W
Main function:
Flying co2 laser marking machine mainly used for marking on non metal materials in production line.
Applicable materials:
Suitable for wood ,paper,leather,cloth,plexiglass,epoxy,acrylic,unsaturated polyester resin and other non-metal materials.
Applicable industries:
Widely used in leather , food ,beverage, colth,electronic,meter,communication instruments,package and other industries, can be combined wiith streamline for online marking.
RF Metal Tube Flying CO2 Laser Marking Machine with Coherent 30W 55W
Main function:
Flying co2 laser marking machine mainly used for marking on non metal materials in production line.
Applicable materials:
Suitable for wood ,paper,leather,cloth,plexiglass,epoxy,acrylic,unsaturated polyester resin and other non-metal materials.
Applicable industries:
Widely used in leather , food ,beverage, colth,electronic,meter,communication instruments,package and other industries, can be combined wiith streamline for online marking.
Machine Type | RF-CO2-30W | RF-CO2-55W |
Laser tube brand and model | Coherent brand C30 (lifetime >50,000 hours) | Coherent Brand C55 (lifetime >50,000 hours) |
Output power | 30W | 55W |
Mode Quality | M2<1.2 | |
Beam Size | 2+/-0.3mm | |
Wavelength | 10.2um | |
Control system | Genuine CLEFINE brand CNF-130A laser printer control system which can be Compatible with win7/8/10 | |
Cooling type | Air cooling | |
Standard Working Area: | 175mm×175 mm | |
Aperture size | 16mm | |
Linearity | 99.9% | |
long term drift over 8 hours | <0.5urad | |
Repeated Accuracy | ≦8urad | |
Minimum Line Width | 0.015mm | |
Power Supply | 220V/50HZ,110V/60HZ | |
Machine Power | 1KW | 1.5kw |
Packing size | 87*77*160cm | 87*77*160cm |
Gross weight | 150kg | 160kg |
Machine Type | RF-CO2-30W | RF-CO2-55W |
Laser tube brand and model | Coherent brand C30 (lifetime >50,000 hours) | Coherent Brand C55 (lifetime >50,000 hours) |
Output power | 30W | 55W |
Mode Quality | M2<1.2 | |
Beam Size | 2+/-0.3mm | |
Wavelength | 10.2um | |
Control system | Genuine CLEFINE brand CNF-130A laser printer control system which can be Compatible with win7/8/10 | |
Cooling type | Air cooling | |
Standard Working Area: | 175mm×175 mm | |
Aperture size | 16mm | |
Linearity | 99.9% | |
long term drift over 8 hours | <0.5urad | |
Repeated Accuracy | ≦8urad | |
Minimum Line Width | 0.015mm | |
Power Supply | 220V/50HZ,110V/60HZ | |
Machine Power | 1KW | 1.5kw |
Packing size | 87*77*160cm | 87*77*160cm |
Gross weight | 150kg | 160kg |
Equipment advantage
◆ Split structure, the fuselage is raised, the laser head can be moved up and down, so that the flying marking machine can be applied to production lines of different heights.
◆ Touch display, advanced technology.
◆ Dedicated embedded control system, fast running speed and good real-time performance.
◆ The device is small in size, light in weight and easy to move.
◆ The laser pulse frequency is high and the marking speed is fast.
◆ Maintenance-free, no consumables, continuous and stable processing for 24 hours, low operating costs of equipment.
◆ The device is equipped with a photoelectric switch to automatically detect the product.
◆ Automatically track production line speed and adjust coding speed.
◆ High-definition coding, seamless integration, easy processing of various production line
Equipment advantage
◆ Split structure, the fuselage is raised, the laser head can be moved up and down, so that the flying marking machine can be applied to production lines of different heights.
◆ Touch display, advanced technology.
◆ Dedicated embedded control system, fast running speed and good real-time performance.
◆ The device is small in size, light in weight and easy to move.
◆ The laser pulse frequency is high and the marking speed is fast.
◆ Maintenance-free, no consumables, continuous and stable processing for 24 hours, low operating costs of equipment.
◆ The device is equipped with a photoelectric switch to automatically detect the product.
◆ Automatically track production line speed and adjust coding speed.
◆ High-definition coding, seamless integration, easy processing of various production line
