RF-C-100W S
RAY FINE

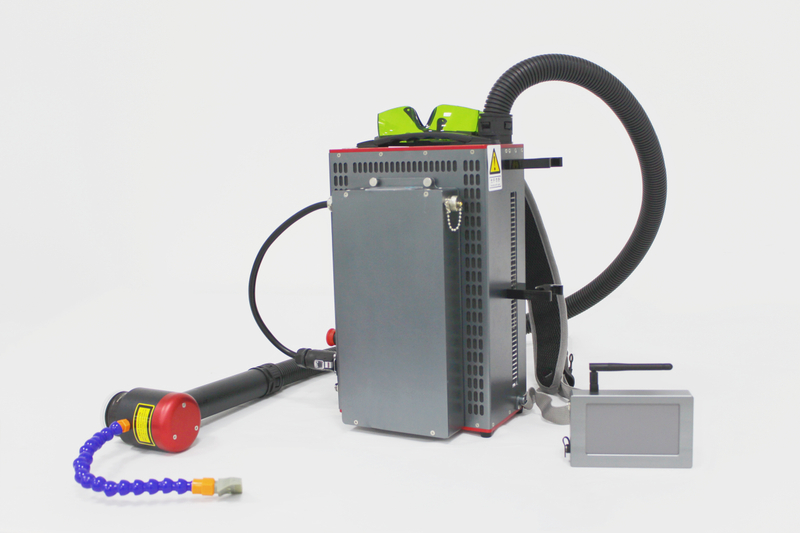

Backpack portable pulsed 100w fiber laser cleaning machine
Operating environment | |
Content | GY-FLC100SC |
Supply voltage | Standard AC220V±10%, 50/60Hz power adapter (output DC48V) |
Optional single battery, 100W continuous work 80-90min | |
Power consumption | ＜600W |
Working environment temperature | 5℃～40℃ |
Working environment humidity | ≤80% |
Optical parameters | |
Average laser power | ≥100W |
Power instability | ＜5% |
Laser Working Mode | Pulse |
Pulse width | 150-190ns |
Maximum monopulse energy | 1.7mJ |
Power regulation range（%） | 10-100( Gradient Adjustable) |
Repeat frequency（kHz） | 20-200（Gradient Adjustable） |
Fiber length | 1.5m |
Cooling mode | Air cooling |
Cleaning Head Parameters | |
Scan range (length * width) | 0mm~100 mm, continuously adjustable; Biaxial supporting 8 scanning modes |
Scanning frequency | 10Hz~300Hz Continuous Adjustable |
Field mirror focal length（mm） | 160mm（ Optional 210mm/254mm/330mm/420mm） |
Depth of focus | About 5 mm |
Mechanical parameters | |

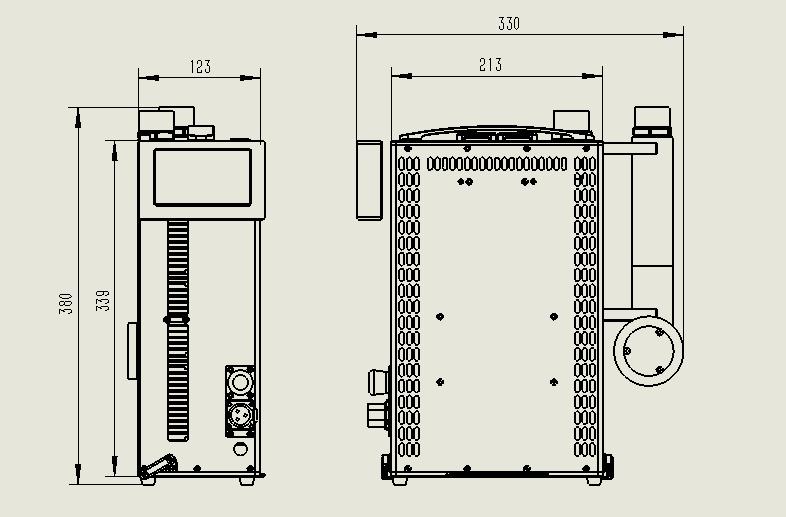

Machine size（Length, width and height） | About 213mm*123mm*339mm（Do not contain batteries） |
About 213mm*168mm*339mm（Contain the battery） | |
Size after packing（Length, width and height） | About 600mm*400mm*360mm（Do not contain batteries） |
About 600mm*400mm*360mm（Contain the battery） | |
Machine Weight | About 8.5 Kg（Do not contain batteries） |
About 12 Kg（Contain the battery） | |
Weight after packing | About 15.5 Kg（Do not contain batteries） |
About 19 Kg（Contain the battery） | |
Cleaning head weight | ＜0.75Kg |
Mode of operation | Handheld/automated |
Smart Cleainng gun
LCD control panel, support muti-languages
Cleaning samples
Before cleaning
After cleaning
More detail request, please feel free to send email to us: sales05@rayfinetech.com, thank you :)
